Kotlin Spring Boot & GraphQL

What is the GraphQL?

GraphQL is a query language for APIs and is similar to REST. GraphQL is developed by Facebook and is open source. GraphQL uses a single endpoint for receiving requests. You have to write your controller name to your query. And also you can select specific fields for your response. Your response will be in JSON format.

There are three basic operations of GraphQL (like GET, POST, PUT…)

  • Query
  • Mutation
  • Subscriptions

Query

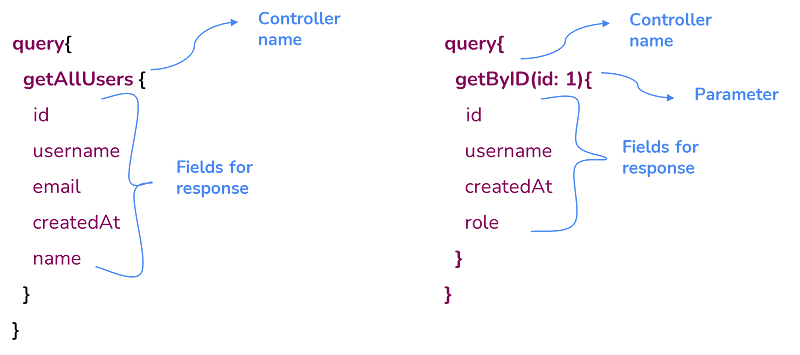

If you want to get something, you can use “query”.

Mutation

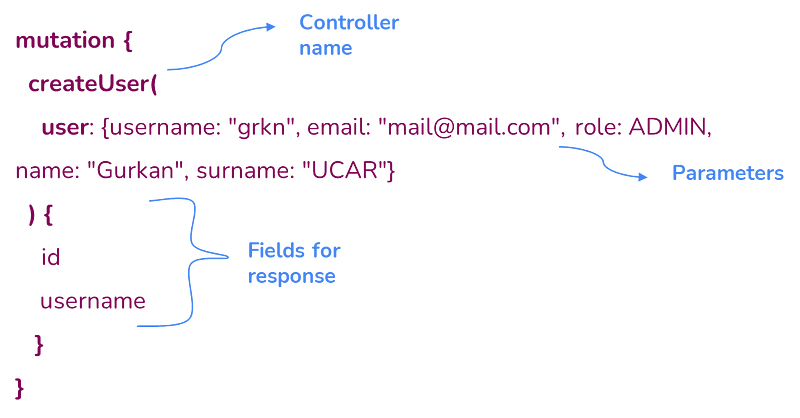

If you want to mutate/change/update your data or create a new one, you can use “mutation”.

Subscription

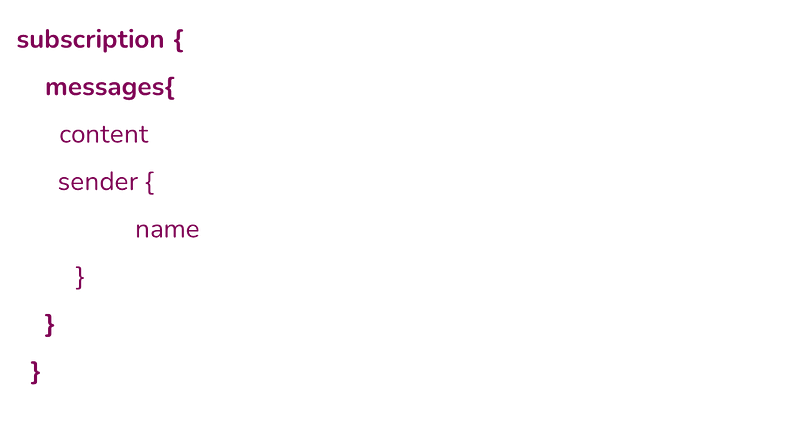

“Subscription” can be used for real-time operations. This operation usually implementing with WebSockets.

GraphQL Scheme

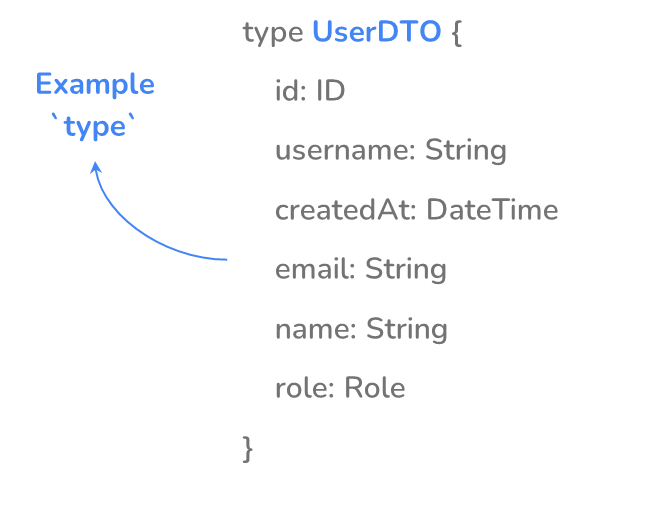

Schemas include your models, queries, mutations and etc. You have to define all related things in your .graphqls file. For instance, you can define a model using type keyword.

Some other keywords:

  • input : input parameter models
  • enum
  • scalar : for custom types

*For more information check the resources

Example GraphQL Scheme ( .graphqls file )

scalar DateTime

type Query {
    getAllUsers : [UserDTO]
    getByID(id: ID!) : UserDTO
}

type Mutation {
    createUser(user: UserCreateRequest): UserDTO
    updateUser(user: UserUpdateRequest): UserDTO
    deleteUser(id: ID!): Boolean
}

type UserDTO {
    id: ID
    username: String
    createdAt: DateTime
    updatedAt: DateTime
    email: String
    name: String
    surname: String
    role: Role
}

enum Role {
    ADMIN
    USER
}

input UserUpdateRequest{
    id:ID!
    username: String!
    email: String!
    name: String
    surname: String
    role: Role
}

input UserCreateRequest{
    username: String!
    email: String!
    name: String
    surname: String
    role: Role
}

Pros and Cons of GraphQL

Pros

  • Single endpoint
  • Fetch specific fields from data (Reduce response size)

Cons

  • Complex queries
  • Caching implementation

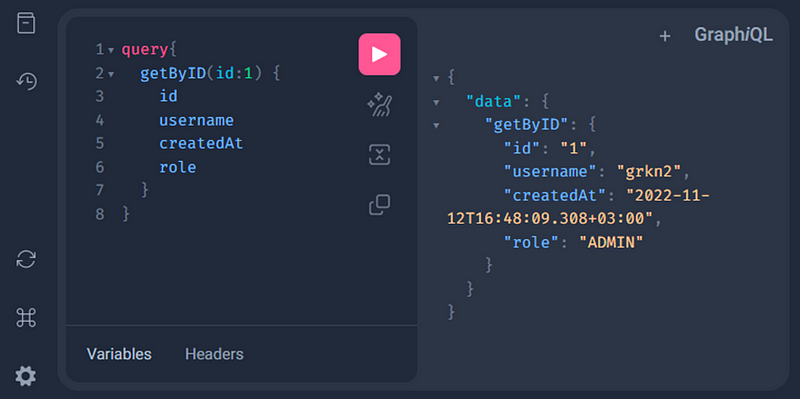

Testing — Graphiql

You can use Graphiql console for execute queries.

*In spring boot, you have to enable it before:

  • spring.graphql.graphiql.enabled=true

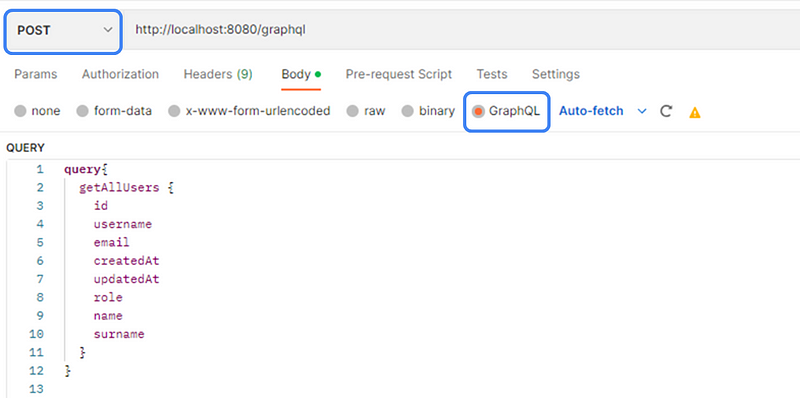

Testing — Postman

Select POST request and send your query in graphql section.

Spring Boot Kotlin implementation

Add these dependencies to your pom.xml file:

<dependency>
            <groupId>org.springframework.graphql</groupId>
            <artifactId>spring-graphql-test</artifactId>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>com.graphql-java</groupId>
            <artifactId>graphql-java-extended-scalars</artifactId>
            <version>19.0</version>
        </dependency>

         <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-graphql</artifactId>
        </dependency>

Controller

*Must be the same name with query and mutation definitions in .graphqls file

@Controller
class UserController(private val userService: UserService) {

    @QueryMapping
    fun getAllUsers() = userService.getAllUsers().map { it.toDTO() }

    @QueryMapping
    fun getByID(@Argument id: Long)
                      = userService.getUserByID(id).toDTO()

    @MutationMapping
    fun updateUser(@Argument user: UserUpdateRequest)
                     = userService.updateUser(user).toDTO()

    @MutationMapping
    fun createUser(@Argument user: UserCreateRequest)
                     = userService.createUser(user).toDTO()

    @MutationMapping
    fun deleteUser(@Argument id: Long)
                     = userService.deleteUser(id)
}
type Query {
    getAllUsers : [UserDTO]
    getByID(id: ID!) : UserDTO
}

type Mutation {
    createUser(user: UserCreateRequest): UserDTO
    updateUser(user: UserUpdateRequest): UserDTO
    deleteUser(id: ID!): Boolean
}

Error Handling

@Component
class GlobalExceptionHandler : DataFetcherExceptionResolverAdapter() {


    override fun resolveToSingleError(e: Throwable,
                   env: DataFetchingEnvironment): GraphQLError? {
        return when (e) {
            is UserNotFoundException -> toGraphQLError(e)
            is Exception -> toGraphQLError(e)
            else -> super.resolveToSingleError(e, env)
        }
    }

    private fun toGraphQLError(e: Throwable): GraphQLError? {
        return GraphqlErrorBuilder.newError()
              .message(e.message)
              .errorType(ErrorType.DataFetchingException).build()
    }
}

Tests

/ /other annotations
@AutoConfigureGraphQlTester
internal class UserControllerTest(
    @Autowired private val graphQlTester: GraphQlTester
) {

    @Test
    fun `should return all users`() {
        val query: String = """
       Query{ getAllUsers { id username email role name surname createdAt updatedAt } }
     """
        graphQlTester.document(query)
            .execute()
            .path("getAllUsers")
            .entityList(UserDTO::class.java)
            .hasSize(2)
    }
}

Resources:

Repository:

  • kotlin:
GitHub - gurkanucar/spring-boot-kotlin-graphql: GraphQL example using kotlin and spring boot
You can't perform that action at this time. You signed in with another tab or window. You signed out in another tab or…
  • java example:
GitHub - folksdev/spring-boot-graphql
You can't perform that action at this time. You signed in with another tab or window. You signed out in another tab or…
